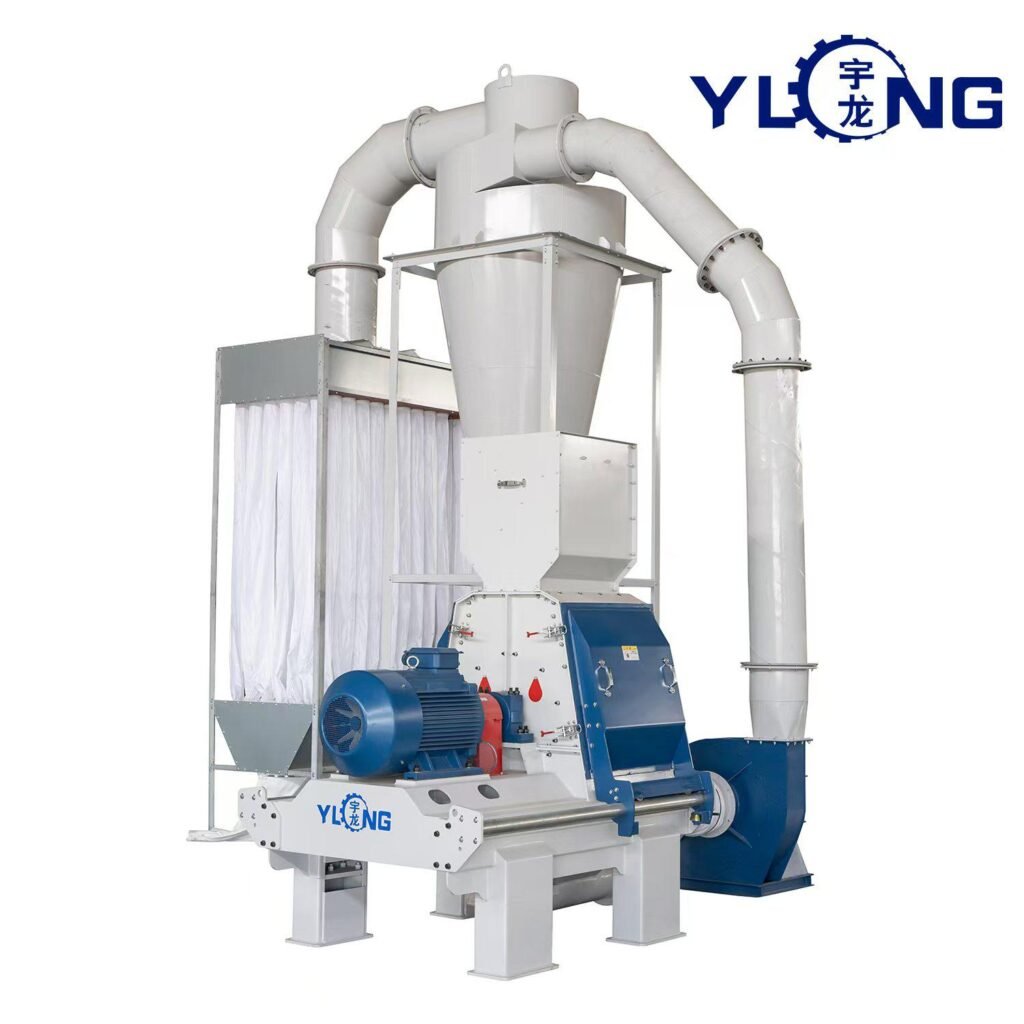

Yulong Hammer Machine
GXP Series single shaft hammer mill is using for crushing the small wood chips, wood shaving, wheat
straw and other fibrous material, of course it also good for crushing corn and other grain animal
feed raw materials.
This series hammer mill adopts steel plate welding structure, the motor and the hammer rotor are
installed on the same base, and the drum gear coupling is used for direct transmission. The rotor can
work forward and reverse after dynamic balance calibration; The top of the machine can be matched
with various feeding mechanisms. This type of hammer mill can be widely used in biomass energy
and feed processing industries.
Model | Main Power | Total kw | Capacity (T/H) |
|---|---|---|---|
GXL 75*75 | 75 | 75+18.5+2.2 | 2-3 |
GXP 75*100 | 90 | 90+30+4 | 4-5 |
GXP 75*100 | 110 | 110+37+4 | 5-6 |
GXP 75*120 | 132 | 32+37+4 | 6-7 |
GXP 75*150 | 160+5.5 | 160+5.5+45+5.5 | 5-7 |
GXP 75*150 | 200+5.5 | 200+5.5+55+5.5 | 6-8 |
Model | Rpm of shaft (r/m) | Qty of Hammer | Power (KW) |
|---|---|---|---|
GXP 75*55 | 2970 | 42 | 55 |
GXP 75*75 | 2970 | 60 | 75/90 |
GXP 75*100 | 2970 | 78 | 90/110 |
GXP 75*120 | 2980 | 96 | 132/160 |
GXPSS 75*110 | 2980 | 192 | 110*2 |
